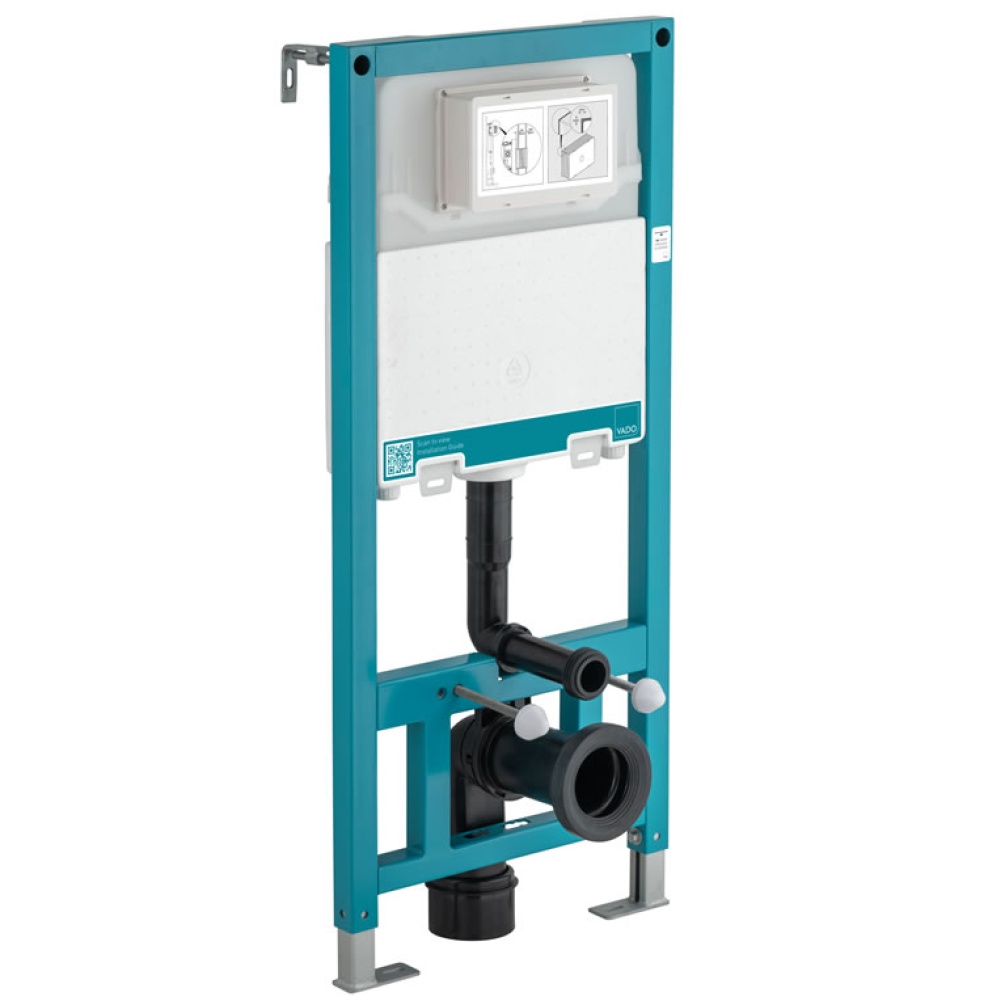

Vado 1135mm Standard Wall-Hung WC Frame & Cistern

Offering easy installation and high-end performance, this standard-height WC frame is the perfect choice for your wall-hung toilet pan. Designed with care and precision by Vado, this frame includes a dual-flush cistern with a preset volume of 3 litres and 6 litres. The flush volume can also be adjusted to a smaller 2.6 litres and 4 litres if required, offering a water-saving, eco-friendly alternative.

This concealed frame is fitted directly into your bathroom wall. Once it's installed, nothing but the toilet pan and flush plate will be visible. This creates a tidy, minimalist look, ideal for contemporary bathroom settings.

Notes:

• 180mm & 230mm width centres to support wall hung toilet
• 250mm leg height adjustment
• Frame supports 400kg weight
• 30mm soil pipe height adjustment
• Block wall & stud frame fixing brackets included
• Top-mounted 1/2” inlet
• Integral internal 1/4 turn lever isolation valve
• Integral internal debris filter
• Finished height fixing location marking
• Flush plate depth tolerance of 70mm
• Preset flush volume 3L / 6L - adjustable to 2.6L / 4L
• Compatible with Vado flush plates only - see required products
