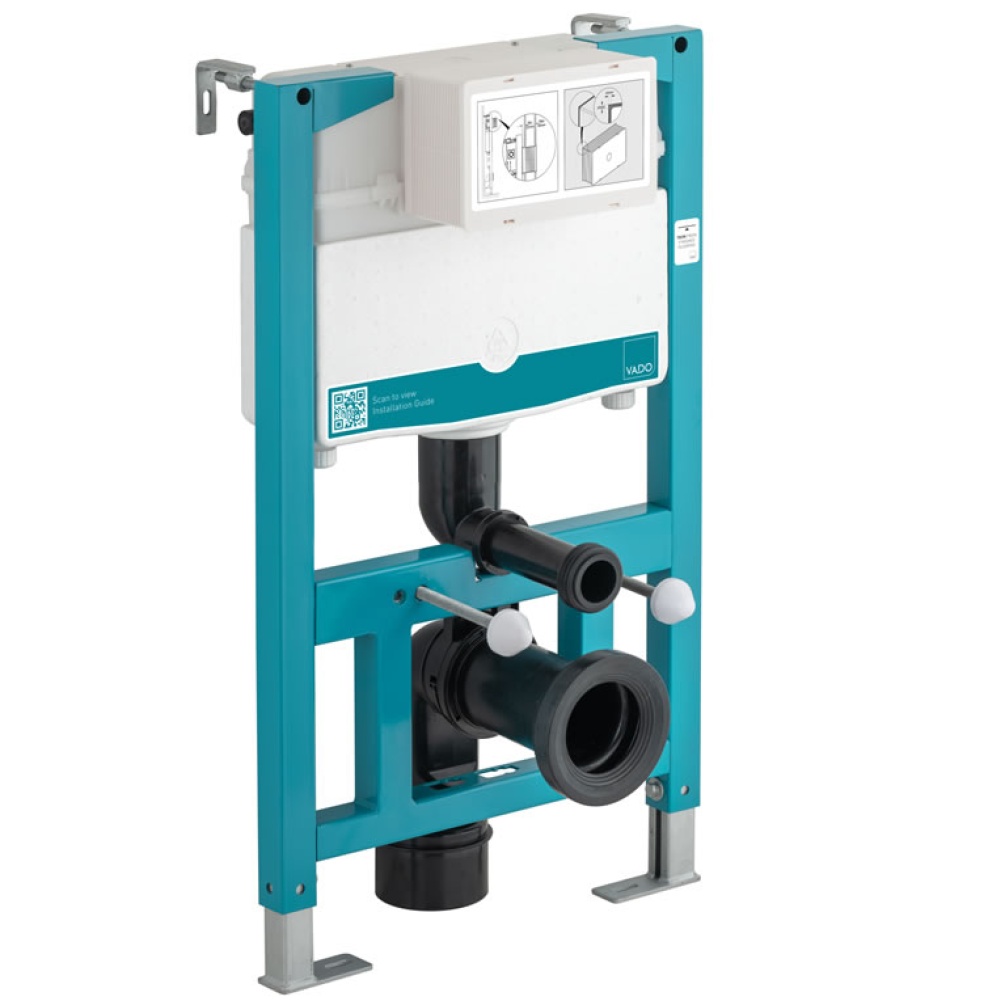

Vado 835mm Short Wall-Hung WC Frame & Cistern

A more compact version of the Standard Wall-Hung WC Frame & Cistern, this practical Vado model is perfect for smaller bathrooms or toilets located beneath a window. It's designed for use with wall-hung toilets, offering tidy, concealed installation that leaves nothing but the pan and flush plate on display. This frame includes a dual flush cistern with a standard 6 litre and 3 litre flush setup. The flush volumes can also be adjusted to 2.6 litres and 4 litres, offering eco-friendly operation that saves on water usage.

Notes:

• 180mm & 230mm width centres to support wall hung toilet
• 250mm leg height adjustment
• Frame supports 400kg weight
• 30mm soil pipe height adjustment
• Block wall & stud frame fixing brackets included
• Side-mounted 1/2” inlet
• Integral internal 1/4 turn lever isolation valve
• Integral internal debris filter
• Finished height fixing location marking
• Flush plate depth tolerance of 70mm
• Preset flush volume 3L / 6L - adjustable to 2.6L / 4L
• Compatible with Vado flush plates only - see required products
