Product Information
Developed using the latest technology, the Crosswater Design 8 range is tailor made for stylish contemporary bathrooms. This shower door is a prime example, merging elegant minimalism with sleek, gleaming silver.
This tastefully understated hinged door comes in a selection of sizes, making it suitable for interiors of varying dimensions. The fixed inline panel and side panels crafted from 8mm toughened glass for assured durability, bolstered with a protective coating that drastically reduces encroaching grime and soap residue. The door is made from 6mm thick glass, and uses flush-fit hinges, which can be reversed to accommodate left or right-handed entry.
Compatible with both shower trays and tiled wetrooms, this door can be used alone in a recess or paired with a side panel for corner installation.
Notes:
- Anodised aluminium finish
- Outward-opening 6mm thick glass door
- With Crosswater Clear protective glass treatment
- 25mm width adjustment for easy fitting
- Anti-leak seals

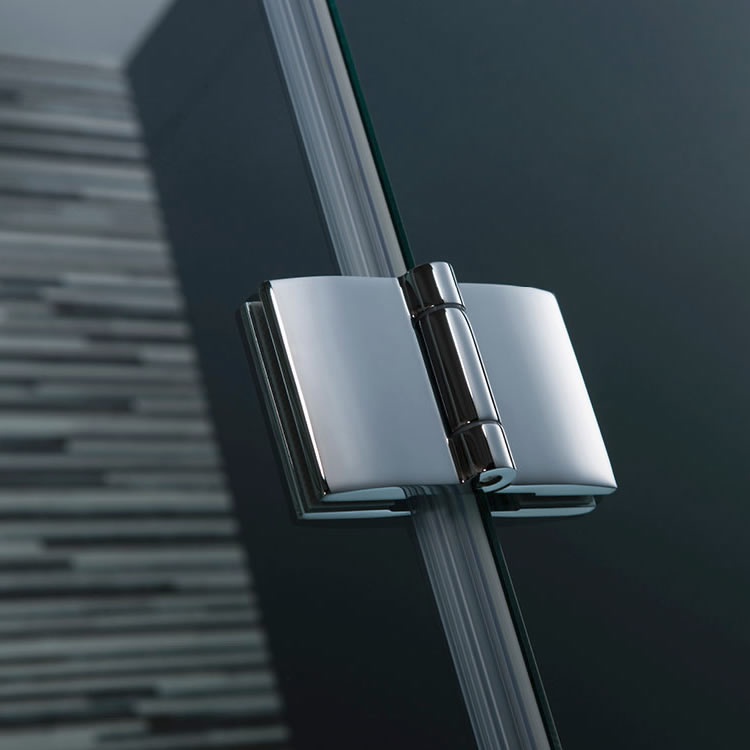

- Flush-fit hinges
- Suitable for shower trays and wetrooms

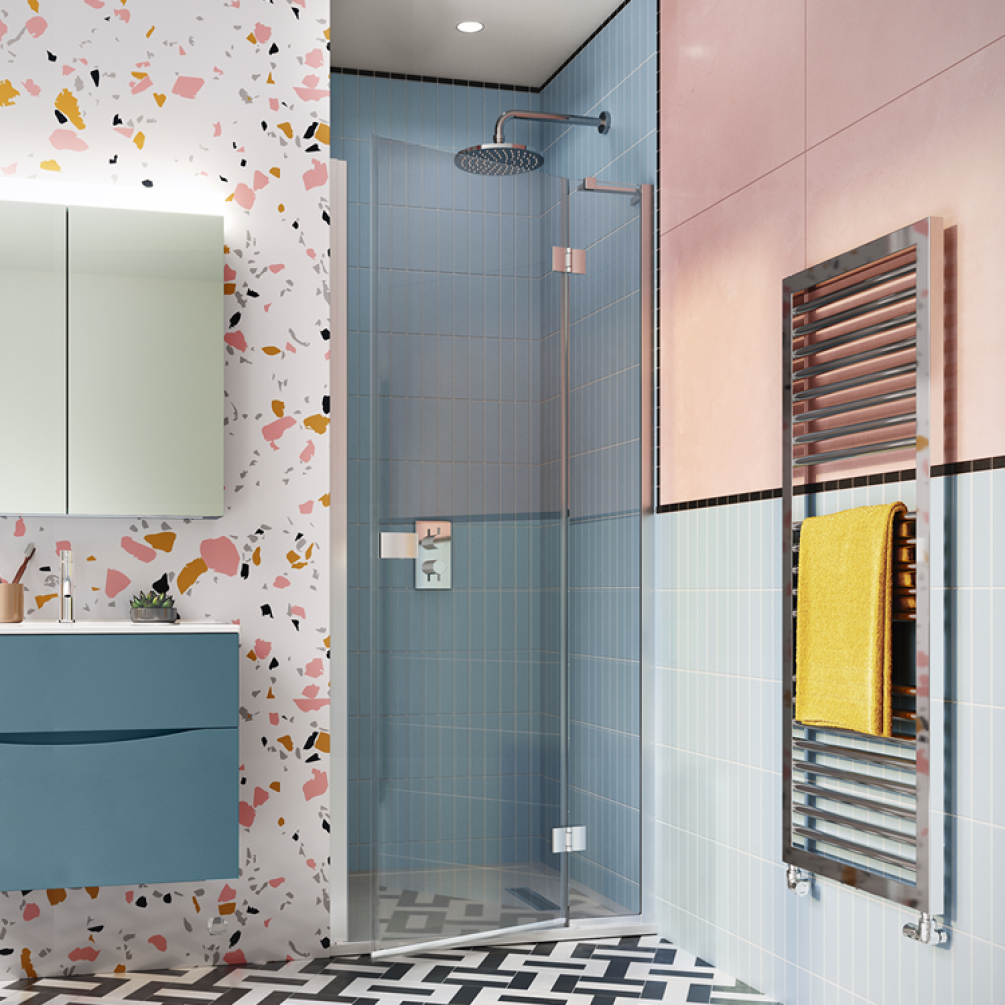

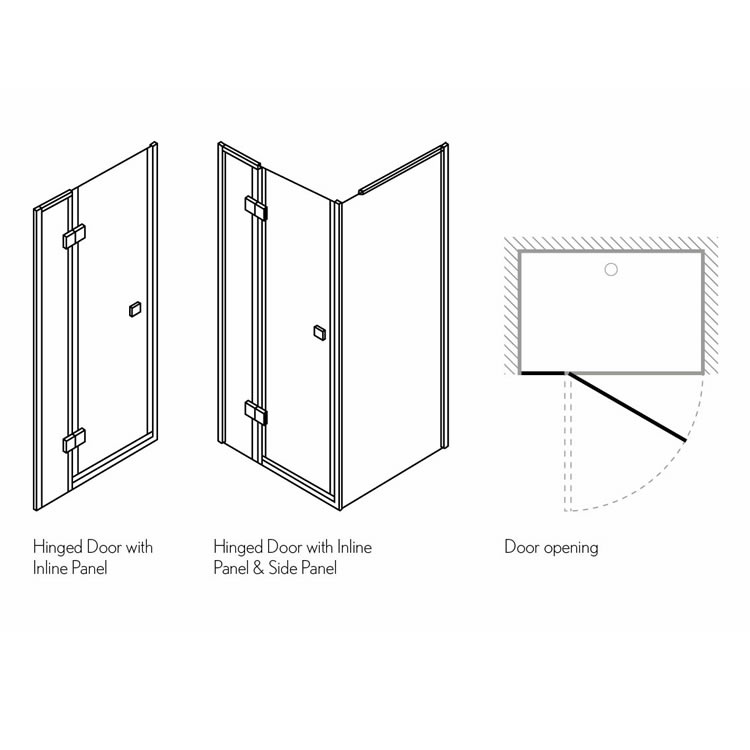

- First image shows recessed installation, second image shows side panel installation
- 1100mm & 1200mm side panels supplied with 90° bracing bar
- 2-year guarantee extendable to 25 years upon registration with Crosswater/Bathroom Brands- must be registered within required timeframe after purchase & installation
- Seals, hinges & rollers guaranteed for 2 years only
Door Adjustment
Width (mm) | Door Opening (mm) | Adjustment (mm) | Adjustment With Side Panel (mm) |
---|---|---|---|
800 | 540 | 770 - 795 | 756 - 771 |
900 | 590 | 870 - 895 | 856 - 871 |
1000 | 590 | 970 - 995 | 956 - 971 |
1200 | 640 | 1170 - 1195 | 1156 - 1171 |
Side Panel Adjustment
Width (mm) | Adjustment (mm) |
---|---|
700 | 675 - 690 |
760 | 735 - 750 |
800 | 775 - 790 |
900 | 875 - 890 |
1000 | 975 - 990 |
1100 | 1075 - 1090 |
1200 | 1175 - 1190 |
Size may vary depending on options selected
