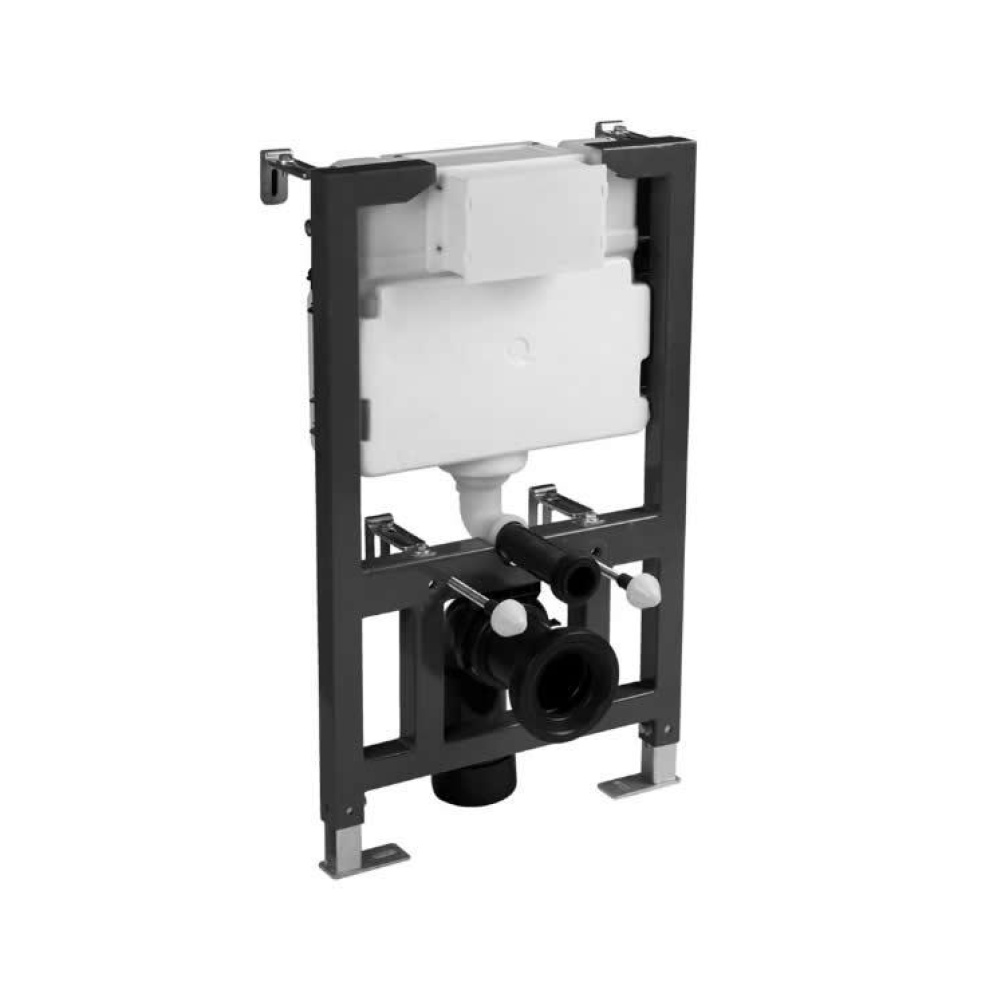

Roper Rhodes 820mm Wall Hung WC Frame

Install any wall hung toilet with this Roper Rhodes 0.82m Wall Hung Toilet Frame, suitable for fitting into any wall or furniture unit.

Comprised of a metal frame and a cistern, this wall hung toilet frame is concealed away for a clean, contemporary appearance once fully installed and giving the toilet its iconic floating look.

The frame comes with adjustable legs with up to 200mm adjustment, as well as an adjustable depth of between 167mm and 215mm to ensure there is sufficient space to hide away item. A toilet flush button of preference (suitable with Roper Rhodes options only) can be fitted to the top or front of the frame for either actuation, and it also comes supplied with a polystyrene insulation jacket.

As a dual flush frame, it has a flushing volume of 6L full flush and 3L smaller flush, and can be used as part of any system with a 0.1-10 bar working pressure. For reassurance, the wall hung toilet frame has also been designed and tested to a weight limt of 400kg.

When installed into a WC unit, the optional furniture adaptor kit is required for use, as it will allow for the frame to be fitted without damaging the fascia of the unit itself.

Purchasing & Installation Notes:

• Only for use with any furniture WC unit measuring 600mm and above - furniture adaptor kit is required for installation in a WC unit
• Flush Button not included - must be purchased separately (see required products above)
