Abacus Wall Mounted 980mm Toilet Frame with Dual Flush Cistern

Compatible with our full range of Abacus flush plates, this Wall Mounted 980mm Toilet Frame with Dual Flush Cistern is an exceptional piece of pipework that would complement the minimalist look of your modern bathroom, while invigorating the function of your toilet space.

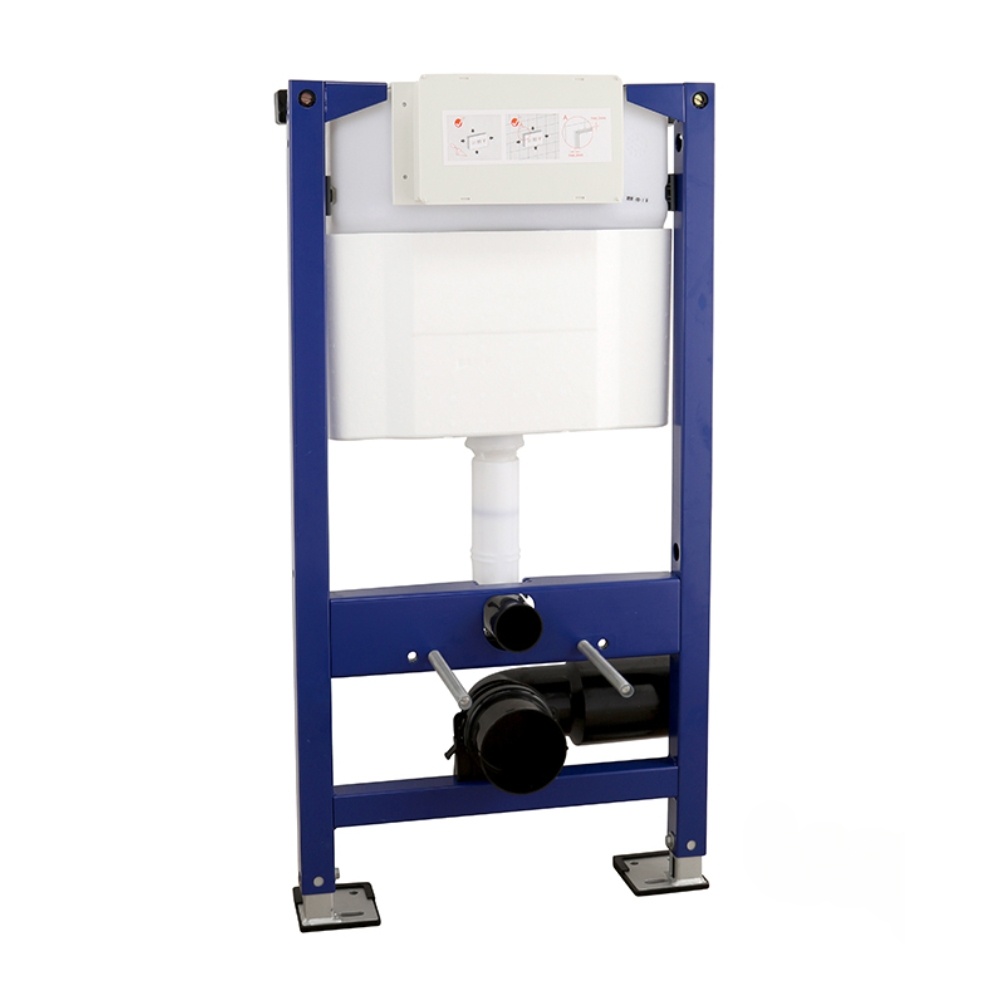

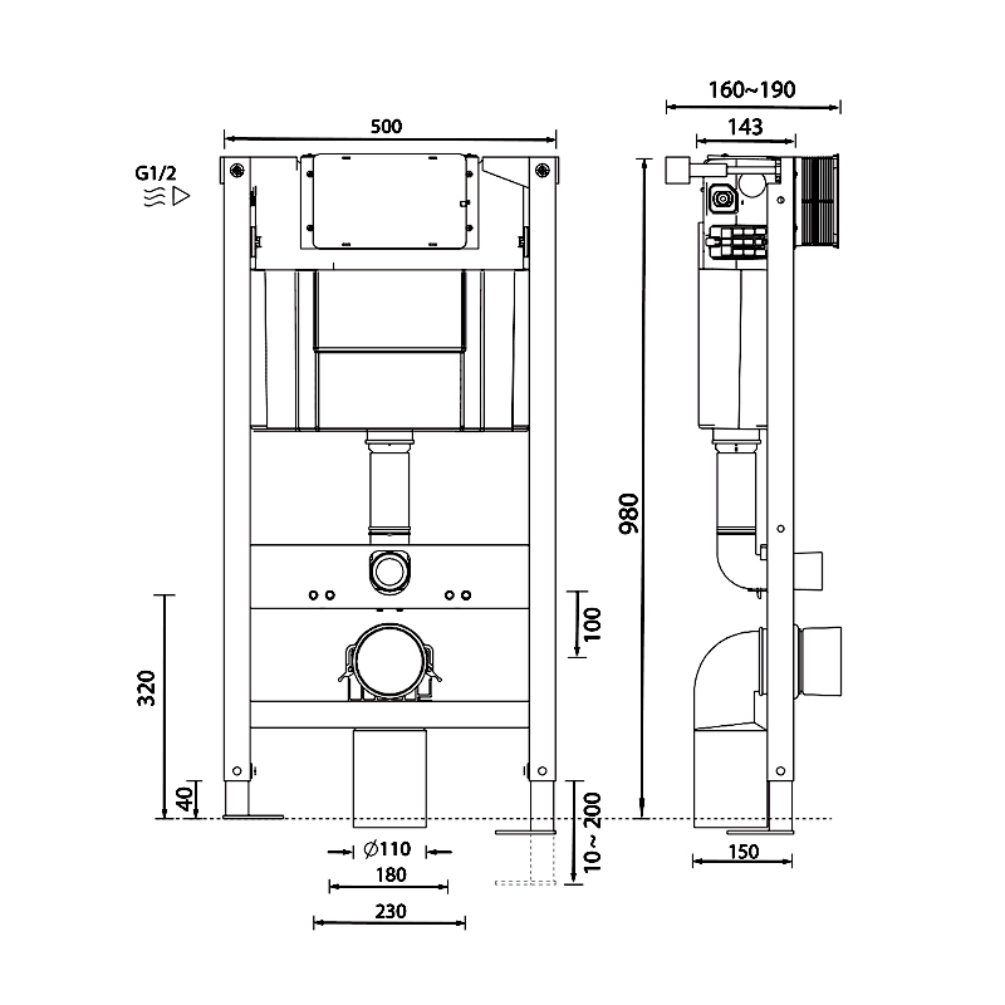

This wall hung toilet frame and cistern, which measures 500mm in width and 980mm in height, consists of a concealed cistern suspended inside a metallic box frame, plus all the necessary pipework needed to install any style of wall hung toilet. At the bottom of the frame are a pair of adjustable feet, which you can raise or lower to ensure the frame is level before it is secured in place, while achieving the preferred height of the toilet pan for your household.

While conventional cisterns only offer access to their syphons from above, this concealed cistern can be adapted such that you can its dual flush syphon is accessible from the top or front of the fixture, such that its suits the layout of your space. Once the toilet frame has been secured, your installer can attach the corrugated tile guide to the top or front face of the cistern, such that the access point remains uncovered after the rest of the product has been concealed.

 Behind the corrugated tile guide is the fascia plate, which grants access to the dual flush syphon and internal water stop once removed. As suggested by its name, the internal water stop halts the water supply to the cistern, should you ever need to conduct maintenance on the pipework or toilet bowl. Meanwhile, the two red sliding tabs on the side of the syphon allow you to adjust the upper and lower limits of the flush volume, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres.

When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
