Abacus Wall Mounted 820mm Toilet Frame with Dual Flush Cistern

Compatible with our full range of Abacus flush plates, this Wall Mounted 820mm Toilet Frame with Dual Flush Cistern is a sophisticated piece of pipework that would elevate the function of your toilet space, while achieving a streamlined look for your modern bathroom.

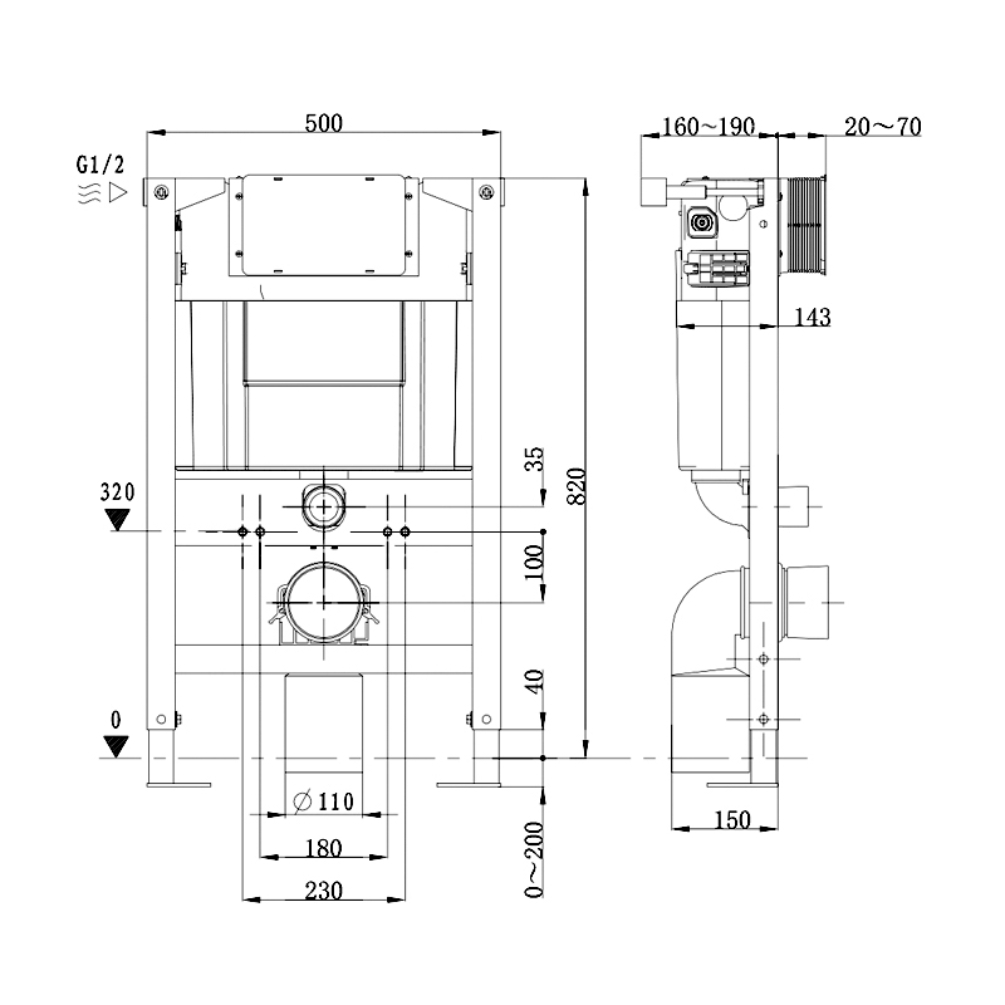

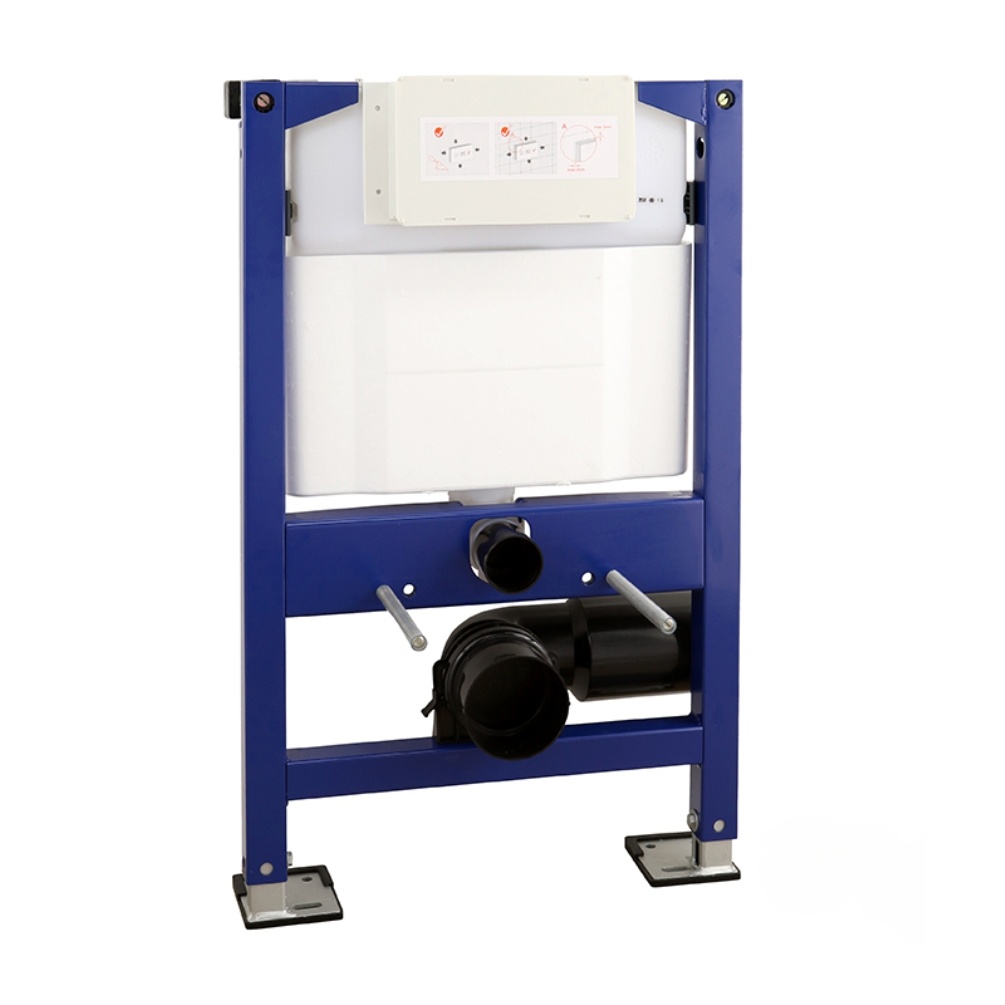

Measuring 500mm in width and 820mm in height, this wall hung toilet frame and cistern comprises of a metallic box frame that houses a concealed cistern and the requisite pipework to facilitate the installation of any style of wall hung toilet. At the base of the frame are adjustable feet, such that you can lower or raise the frame to achieve the preferred height for your household, while ensuring the fixture is level ahead of its installation.

Unlike with conventional cisterns, the dual flush syphon of this concealed cistern can be accessed then controlled from the top or the front of the cistern, in accordance with the demands of your space or your personal preference. Once the toilet frame has been secured, your installer can attach the corrugated tile guide to the top or front face of the cistern, such that the access point is kept uncovered after they have concealed the rest of the fixture.

Behind the corrugated tile guide is the fascia plate, which can be removed to grant access to the dual flush syphon and internal water stop. Adjusting the two red sliding tabs on the side of the syphon allows you to increase or decrease the flush volumes, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres. As suggested by its name, the internal water stop cuts the cistern off from your water supply, should you need to conduct any maintenance on the toilet bowl or pipework below.

When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
