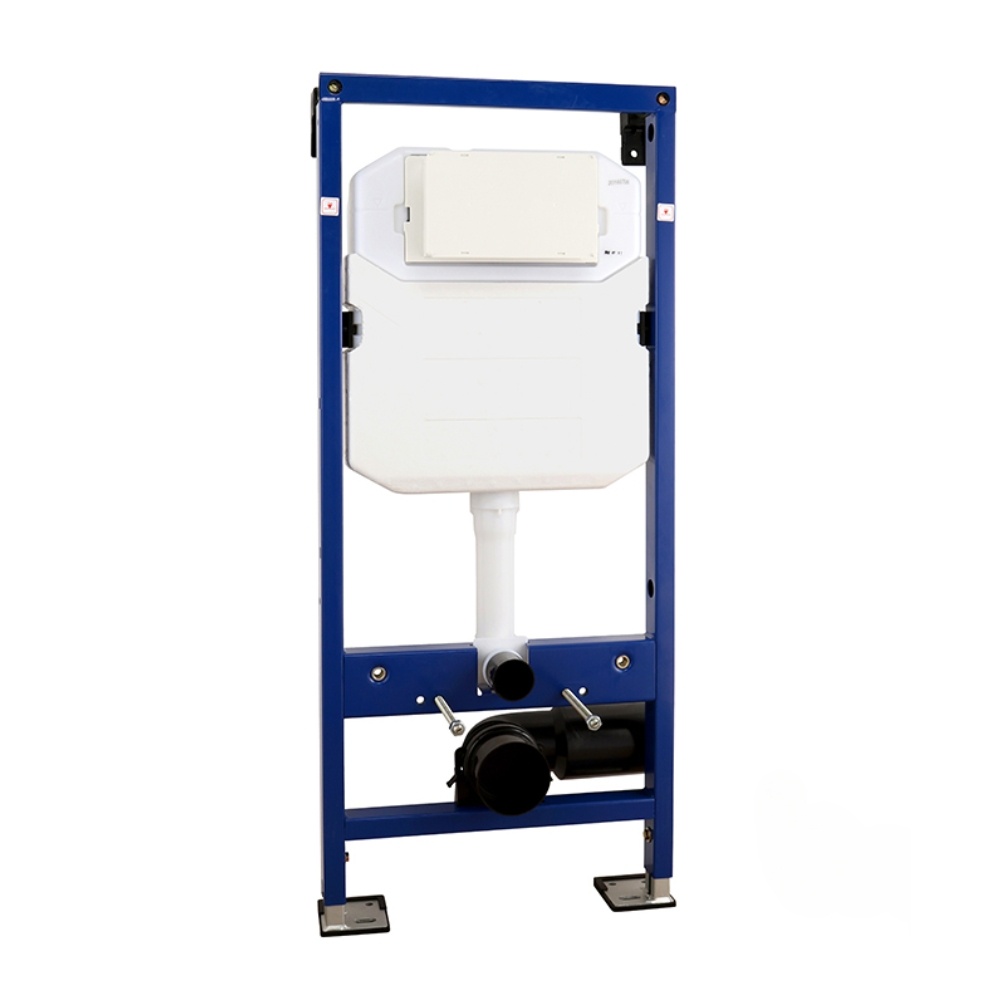

Abacus Wall Mounted 1180mm Toilet Frame with Dual Flush Cistern

Compatible with our full range of Abacus flush plates, this Wall Mounted 1180mm Toilet Frame with Dual Flush Cistern is an innovative piece of pipework that would transform the function of your modern bathroom, while streamlining the look of your toilet space.

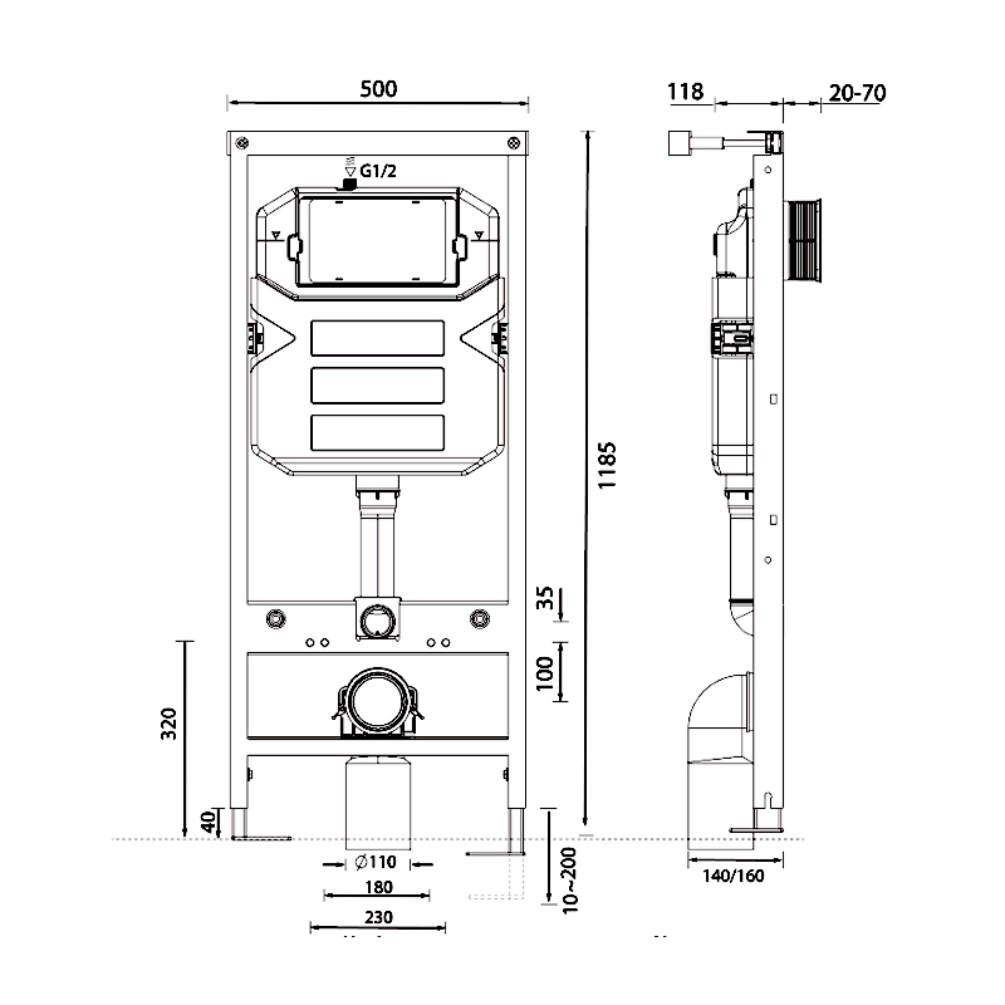

Measuring 500mm in width and 1180mm in height, this wall hung toilet frame and cistern comprises of a concealed cistern houses inside a metallic box frame, as well as the necessary pipework need to accommodate any style of wall hung toilet. At the bottom of the frame are a pair of adjustable feet, which allow you to raise or lower the frame to ensure its adjoining pan is an appropriate height for your household, while making sure that it sits level ahead of your installer securing it to the wall.

While you can only access the syphons of conventional cisterns from above, this concealed cistern can be adapted such that its dual flush syphon can be accessed by the top or the front, depending on your preference or the demands of your space. Once your installer has secured the toilet frame, the corrugated tile guide can be attached to the top or front of the fixture, leaving its access point uncovered when the rest of the product has been concealed.

Behind the corrugated tile guide is the fascia plate, which can be removed to provide access to the dual flush syphon and internal water stop. As suggested by its name, the internal water stop halts the water supply to the cistern, should you ever need to conduct maintenance on the pipework or toilet bowl. Meanwhile, the two red sliding tabs on the side of the syphon allow you to adjust the upper and lower limits of the flush volume, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres.

When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
