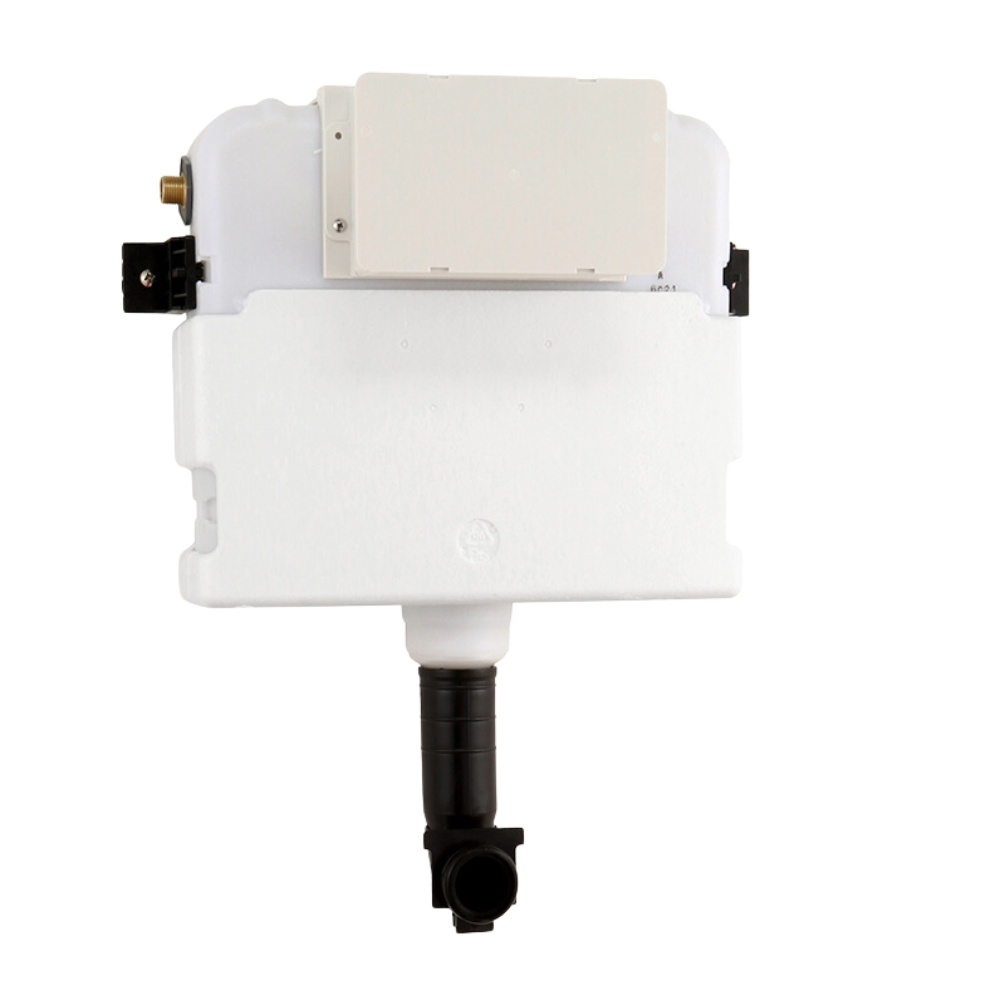

Abacus Easi-Plan 980mm Concealed Dual Flush Cistern

Compatible with our full range of Abacus flush plates, the Easi-Plan 980mm Concealed Dual Flush Cistern is a sophisticated piece of sanitaryware that would streamline the function and aesthetic of any modern bathroom.

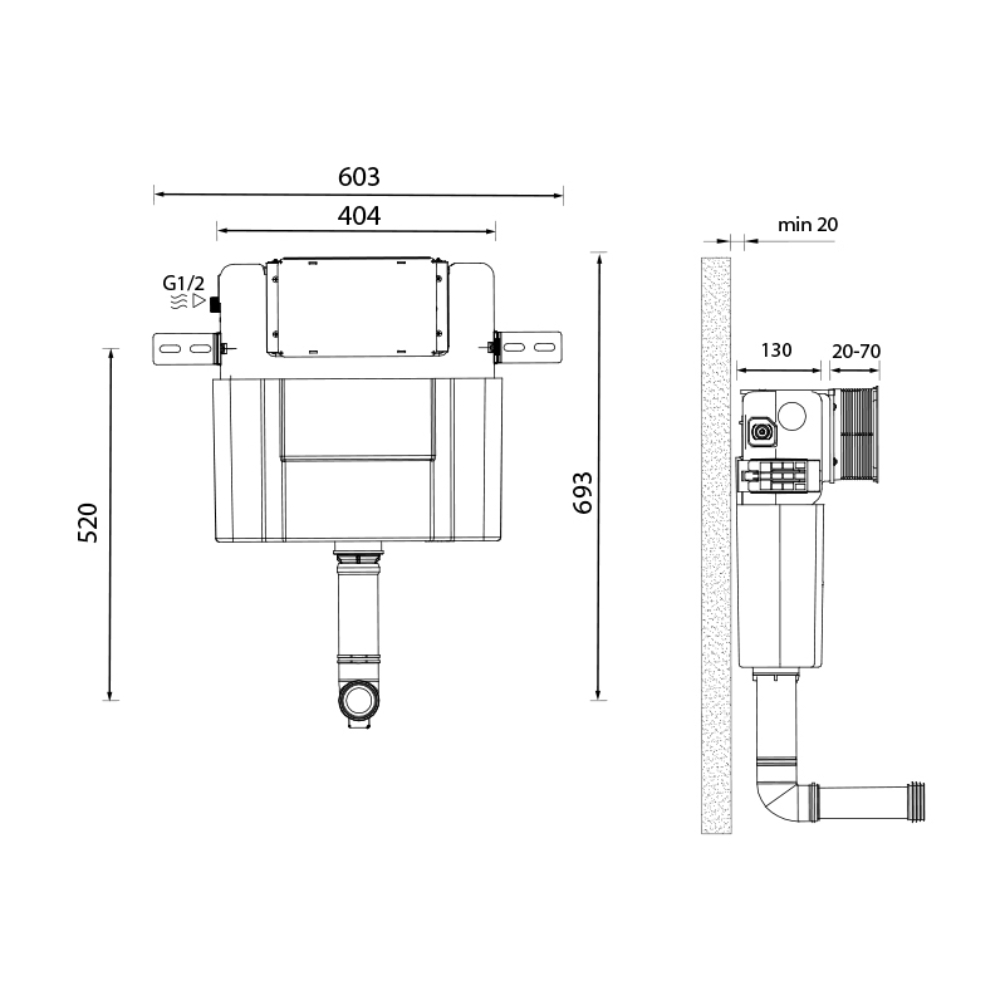

This dual flush concealed cistern, which measures 603mm in width and 693mm in height, is supplied with wall brackets that attach to either side of the product such that it can be secured to you bathroom wall, in addition to the requisite pipework to connect it to any style of back to wall toilet. Unlike most conventional cisterns, the inner workings of this concealed cistern can be accessed either from above or from the front of the fixture.

Once your installer has mounted the cistern, they can attach the corrugated tile guide to either the top or the front face of the product, leaving the access point exposed after the rest of the cistern has been concealed behind your wall tiles. Behind the corrugated tile guide is the fascia plate, which grant direct access to the dual flush syphon and internal water stop upon being removed.

Adjusting the two red sliding tabs on the side of the dual flush syphon allow you to increase or decrease the flush volume, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres. As its name would suggest, the internal water stop suspends the water supply to the cistern such that you can conduct maintenance on the toilet bowl or pipework. Meanwhile,

When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
