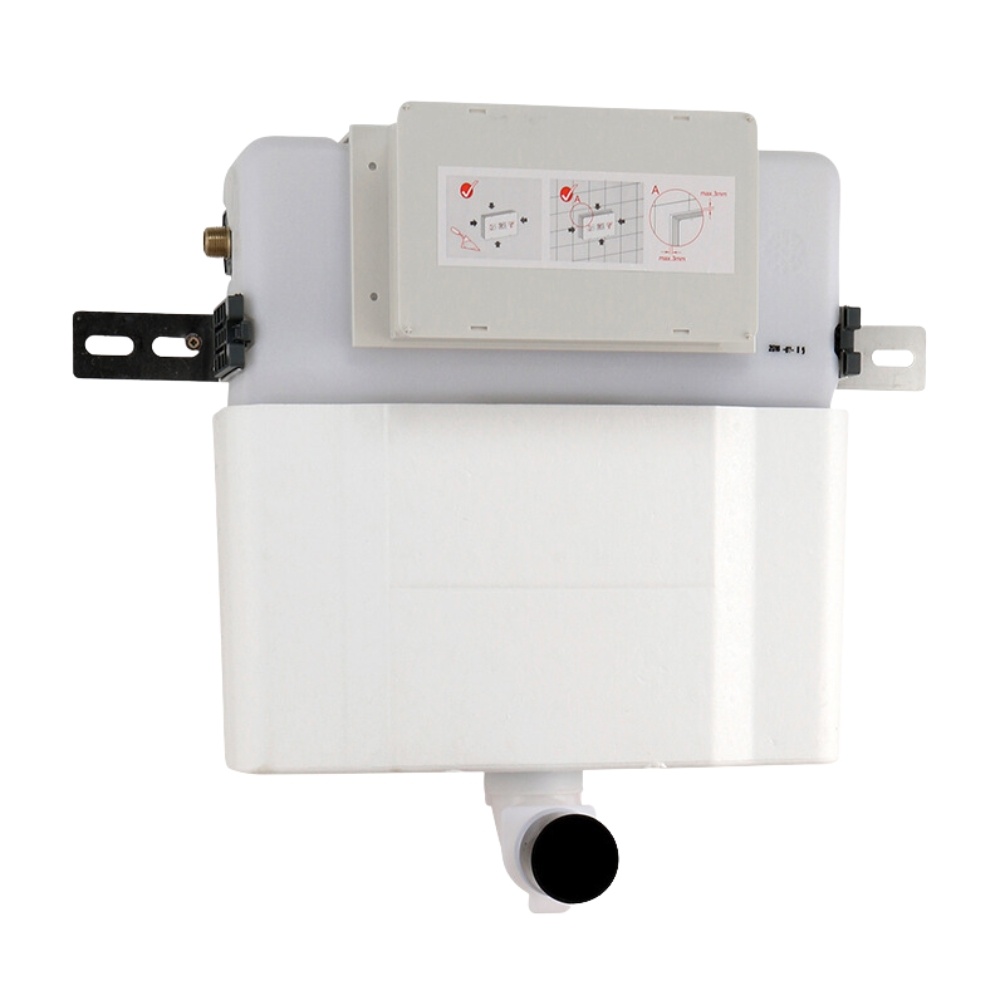

Abacus Easi-Plan 820mm Concealed Dual Flush Cistern

Compatible with our full range of Abacus flush plates, the Easi-Plan 820mm Concealed Dual Flush Cistern is an intelligent piece of sanitaryware that would complete the minimalist look of your toilet space, while elevating the function of your modern bathroom.

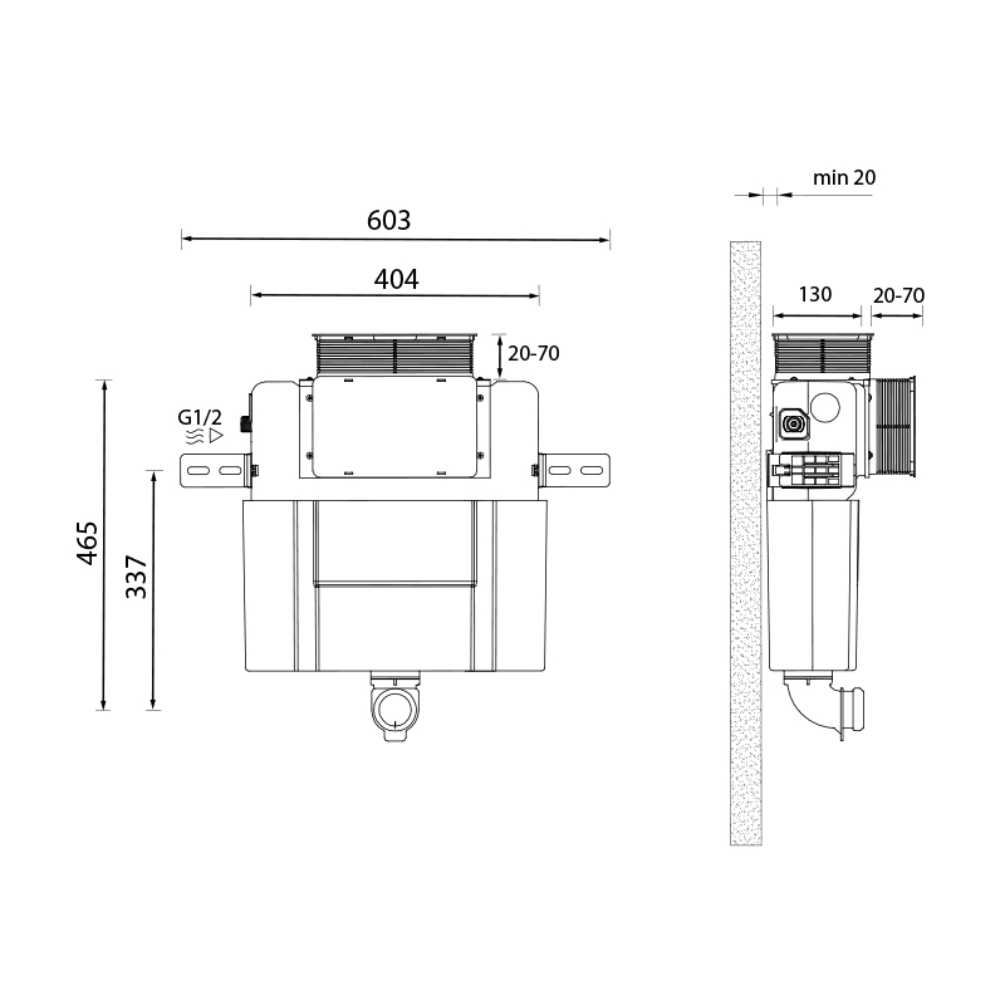

Measuring 603mm in width and 465mm in height, this dual flush concealed cistern includes wall brackets on either side of the product such that it can be securely installed into your space, as well as all the necessary pipework to connect it to any style of back to wall toilet. While the inner workings of most conventional cisterns can only be entered from above, this concealed cistern can be adapted such that you can access its dual flush syphon from the top or the front of the fixture.

Once the concealed cistern has been mounted, your installer can attach the corrugated tile guide to the top or the front face of the cistern, such that an accent point is left exposed when the rest of the product has been hidden behind your wall tiles. Behind the corrugated tile guide is the fascia plate, which grant direct access to the dual flush syphon and internal water stop upon being removed.

As its name would suggest, the internal water stop suspends the water supply to the cistern such that you can conduct maintenance on the toilet bowl or pipework. Meanwhile, on the side of the syphon there are two red sliding tabs that can be adjust to increase or decrease the flush volume, such that your cistern produces a substantial 6 litre or 3 litre flush, or a more conservative 4.5 litres or 2 litres.

When are you satisfied with the settings of your cistern, you can cover the fascia plate with one of our wide variety of Abacus flush plates, available in numerous styles and coloured finishes that are sure to accentuate the aesthetic of your contemporary space.
